Einzelheiten zum Produkt
Herkunftsort: China
Markenname: Excar
Zertifizierung: CE
Model Number: D-G8+3
Zahlungs- und Versandbedingungen
Min Bestellmenge: 1 Einheit
Preis: Negotiate
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Model NO.: |
D-G8 |
Kraftstoff:: |
Elektrisch |
Seat: |
11 |
Typ: |
Sightseeingwagen |
Power: |
7.5KW |
Gradeability: |
20-30% |
Voltage of Battery: |
72V |
Transportpaket: |
Behälter |
Model NO.: |
D-G8 |
Kraftstoff:: |
Elektrisch |
Seat: |
11 |
Typ: |
Sightseeingwagen |
Power: |
7.5KW |
Gradeability: |
20-30% |
Voltage of Battery: |
72V |
Transportpaket: |
Behälter |
| Item | Description |
| Overall dimensions (L x W x H) | 3920x1845x2020mm |
| Ground clearance | 170mm |
| Wheelbase | 1995mm |
| Front wheel tread (mm) | 1210mm |
| Rear wheel tread (mm) | 1200mm |
| CONFIGURATION | |
| MOTOR: | 72V 7.5KW |
| CONTROLLER: | CURTIS CONTROLLER 72V 350A |
| BATTERIES: | TROJAN T-875 9*8V/72V LITHIUM |
| CHARGER: | 72V 30A INTELLIGENT ONBOARD CHARGER |
| CHASSIS CONFIGURATION | |
| TRANSAXLE: | SPECIAL REAR AXLE FOR ELECTRIC VEHICLE |
| BRAKE SYSTEM: | VACUUM BOOSTER HYDRAULIC BRAKE |
| STEERING STSREM: | EPS(ELECTRIC POWER STEERING)SYSTEM |
| F/R SUSPENSION: | MACPHERSON INDEPENDENT SPRING |
| TYRE: | 165/70R-12 TYRE |

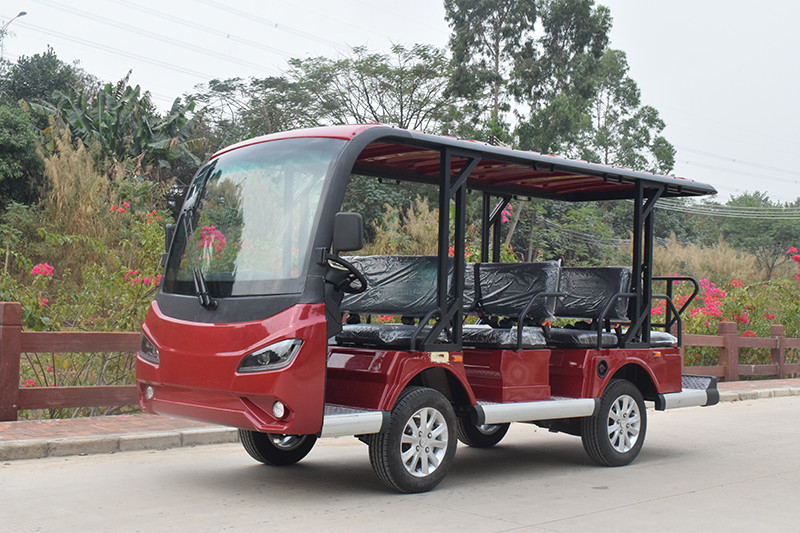

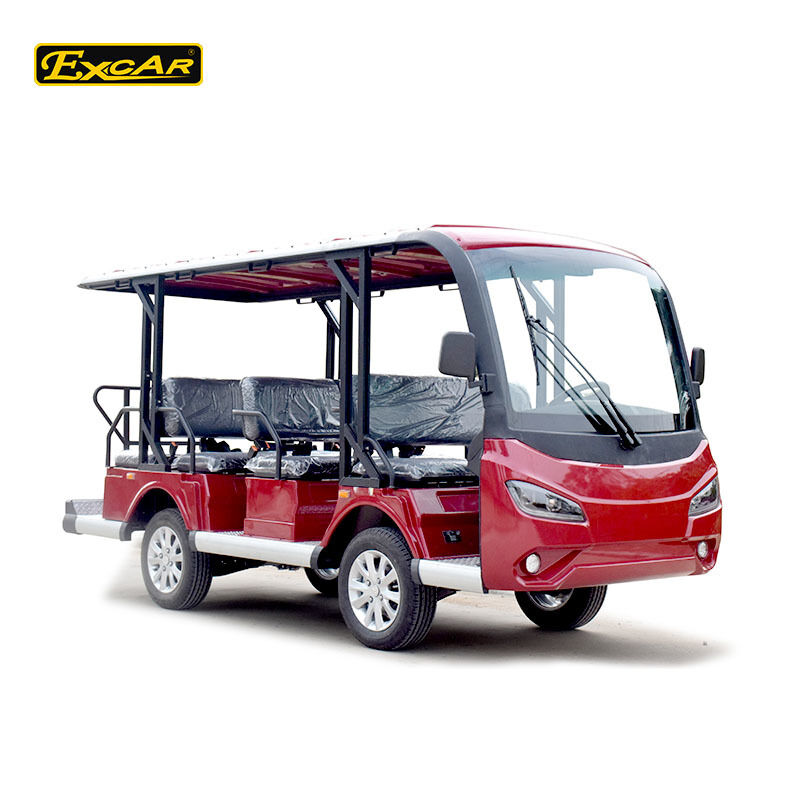

EXCAR G8+3 Person Electric Sightseeing Bus 7.5KM 72V Trojan Electric Sightseeing Car
Our golf cart has the same parts with Club Car,so the warranty can be gurantee,details parts listed as below:
| ~ Advanced Disc Brake Technology | |||
| ~ Global Special LED Headlight | |||
| ~ Italy Graziano Transaxle | |||
| ~ Curtis Controller 48V 275A | |||
| ~Special Design Battery Tray | |||
| ~Rear View Mirror And Driver/Passenger Side Mirrors | |||
| ~Automotive Safty Glass Windshield | |||
| ~Deep Cup Holders | |||
| ~USA Imported Unique E-KEY | |||
| ~ Eletromagnetic Brake Makes Driving More Safty | |||
| ~ 100% Waterproof accelerator |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20” container | 40” container | |||
| A1S2 | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 2641*1219*1727 | 2641*1219*1250 | 4 units | 8units | 10units | 20units | |
a) LCL shipment Packing:
roof move-off packing, steel frame , cartoon paper cover.
b)FCL shipment Packing:
packed by plastic foam & plastic film
FAQ
1.Can you customize the cart according to our special request?
Yes,we can customize the cart according to your request unless some complex parts we hard to make.
2.What is your MOQ?
You can order just 1 unit .But if your order is big, we will provide you with a discount.
3.Can we put the Logo we designed on the cart?
Yes, you can put your own Logo on the cart.
4.What is your lead time for production?
The typical lead time of our cart is 15 days.
5.What kind of warranty Excar provides?
Non-artificial damaged products,shifting for a year or one year repair.
